HVR Zero APX Mini

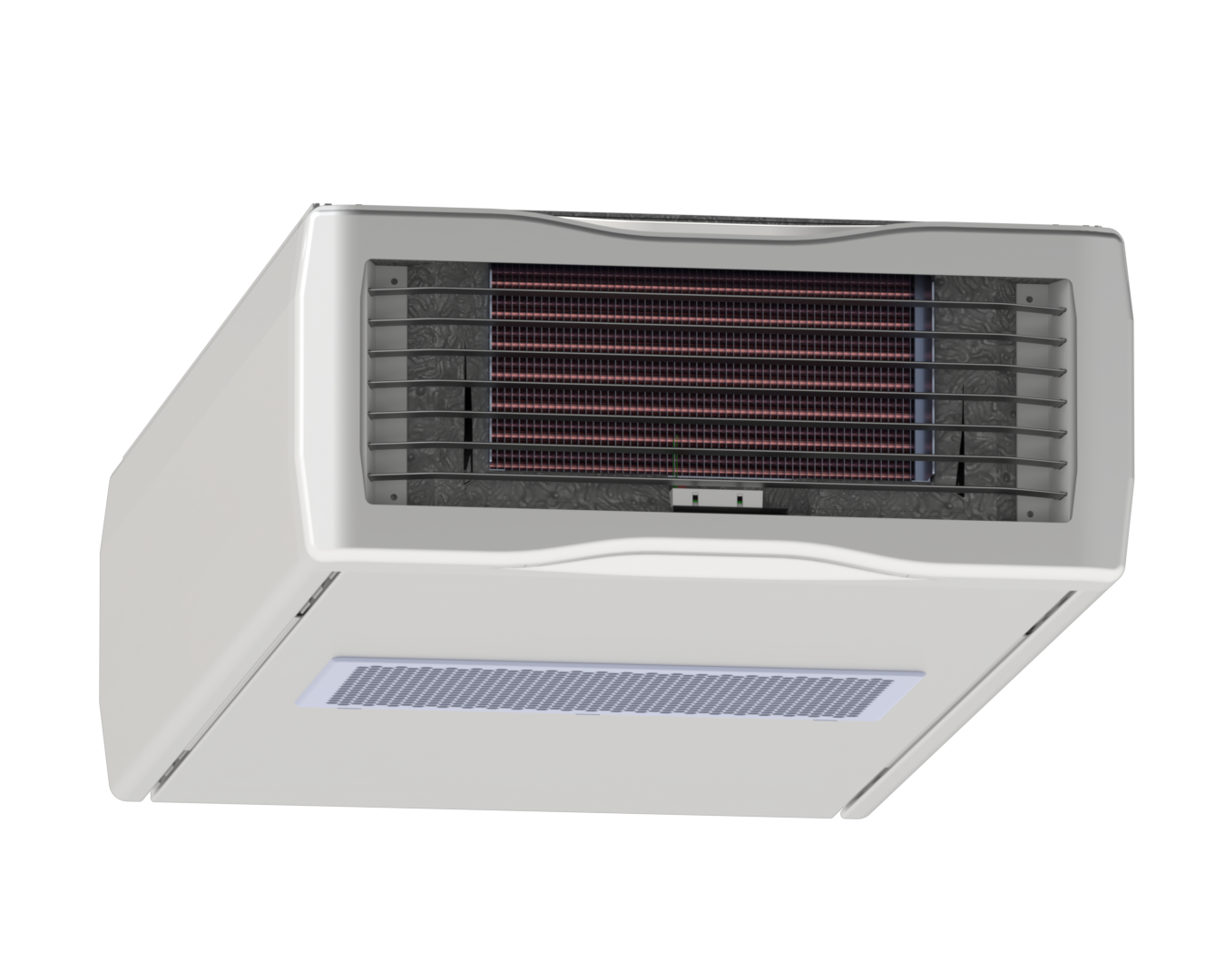

The product studied in this EPD is the HVR Zero APX Mini hybrid ventilation unit, manufactured by Monodraught Ltd. It is a decentralised, ceiling-mounted hybrid ventilation, heating, and cooling system that integrates a crossflow heat exchanger, multiple IAQ sensors, and advanced control interfaces. The product is identified by model name HVR Zero APX Mini, available in two-pipe and four-pipe coil variants and is supplied with a certified airtightness test report in accordance with CIBSE TM23 (2022). Each unit weighs 39 kg and has external dimensions of 680 mm (W) × 299 mm (H) × 1330 mm (L). Materials used include powder-coated aluminium (T6061), flame-retardant expanded polypropylene (UL94: HF1), and copper piping with aluminium fins. The HVR Zero APX Mini is designed for use in offices, classrooms, and healthcare or educational buildings, where spaces are intermittently occupied during daytime hours. It is not intended for 24-hour occupancy. The unit provides mechanical ventilation with heat recovery and adaptive flow control, achieving over 50% heat recovery efficiency, with a hybrid daytime flow rate of 65 l/s and a night-time cooling capacity of 125 l/s. The Rated Service Life (RSL) is 15 years, as defined in the project-specific LCA report. The system includes integrated sensors for temperature, CO₂, VOCs, humidity, particulate pollution (PM2.5), and airflow, in alignment with WELL Building Standard IAQ monitoring. Specific fan power (SFP) in daytime operation is 0.093 W/l/s, and wintertime operation is 0.15 W/l/s. Electrical input is 230 V AC, with a peak current of 1.1 A. Control systems include the Modena wall controller and optional Acuity BMS integration for remote and automated operation. Further information can be found at: https://www.monodraught.com
Read more
Manufacturer
Monodraught Ltd
Published date
21 Nov 2025
Product Sector
Construction product
EPD number
HUB-4405
Country
United kingdom
Expiry date
20 Nov 2030

EPD details

Product sector
Electrical product
EPD category
Sister EPD (5 years)
Averaging type
Multiple products
Scope
Cradle to gate with options, A4-B7, and modules C1-C4 and D
Reference standard
EN 15804:2012+A2:2019/AC:2021
PCR
EPD Hub Core PCR 1.2
cPCR
Not provided

Manufacturer information

Name
Monodraught Ltd
Address
Halifax House, Halifax Rd, High Wycombe HP12 3SE
Email
info@monodraught.com
Website
https://www.monodraught.com/

Verification details

EPD author
Karan Mutty Monodraught
Verifier
Magaly Gonzalez Vazquez
Declaration status
Verified

Environmental impacts

Declared unit
1
Mass per unit
36.5 kg
