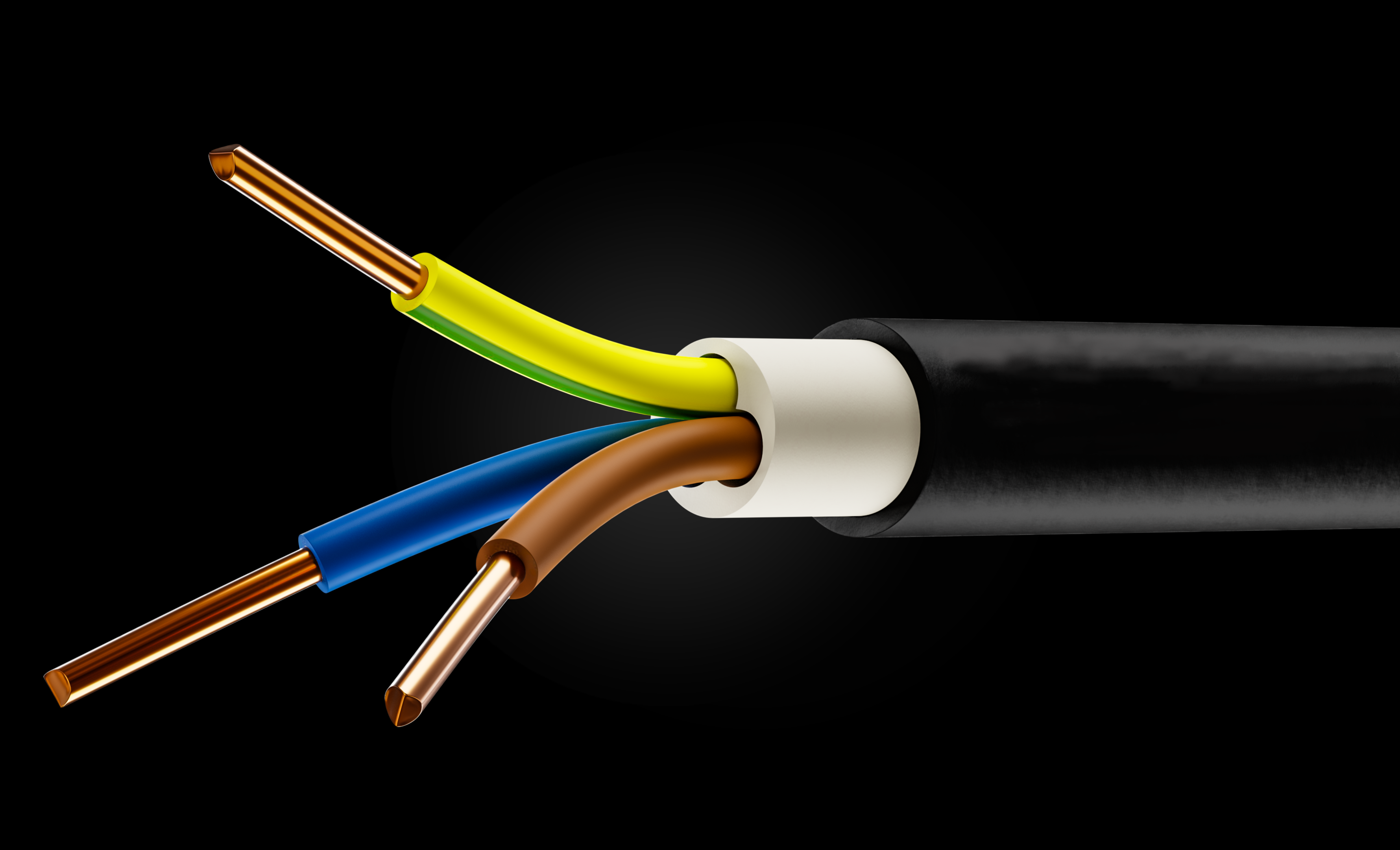

N2XH B2ca and Cca– halogen-free, low smoke, fire resistant power cables with Cu conductors
This Environmental Product Declaration covers N2XH low-voltage power cables manufactured by Electroplast SA Romania. These cables are designed for use in fixed electrical installations in residential, commercial, and industrial buildings — including fire-sensitive environments where low smoke emission and halogen-free properties are required for enhanced fire safety.
The representative product for the analysis is the N2XH 3 × 2.5 cable, which represents the largest share of sales volume. Impacts for other products in the same family are presented in Annex 1.
TTechnical Characteristics
Technical Characteristic Value Standards
Voltage rating (U₀/U) 0.6 / 1 kV HD 604 S1, IEC 60502-1
Testing voltage 4 kV HD 604 S1, IEC 60502-1
Minimum laying temp. -5 °C HD 604 S1, IEC 60502-1
Maximum working temp. 90 °C HD 604 S1, IEC 60502-1
Maximum short-circuit temp. 250 °C HD 604 S1, IEC 60502-1
Minimum bending radius Single-core: 15 × D HD 604 S1, IEC 60502-1
Multicore: 12 × D
CPR fire performance class B2ca-s1,d0,a1 EN 50399
Low smoke emission Yes EN 61034
Halogen-free Yes EN 60754
Fire retardant Yes EN 60332-3
Construction and Materials
N2XH cables are manufactured in a controlled factory environment using:
- Copper conductors with high conductivity;
- Cross-linked polyethylene (XLPE) insulation;
- Halogen-free flame-retardant (HFFR/LSZH) outer sheath.
Manufacturing steps include conductor stranding, insulation and sheath extrusion, cooling, printing, and final electrical and mechanical testing under strict quality control.
These cables provide:
- Enhanced fire safety through low smoke emission and halogen-free properties;
- Reliable electrical performance under rated and short-circuit conditions;
- Mechanical flexibility consistent with installation requirements.
Finished cables are delivered on wooden or recyclable drums, ready for on-site installation.
ELECTROPLAST SA
23 Jan 2026
Construction product
HUB-5072
Romania
23 Jan 2031
Product sector |
Construction product |
EPD category |
Third party verified EPD (5 years) |
Averaging type |
No averaging |
Scope |
Cradle to gate with options, A4-A5, and modules C1-C4 and D |
Reference standard |
EN 15804:2012+A2:2019/AC:2021 |
PCR |
EPD Hub Core PCR 1.2 |
cPCR |
Not provided |
Manufacturer information
Name |
ELECTROPLAST SA |
Address |
Street Subcetate no. 14, Bistrita, county Bistrita-Nasaud, Romania, 420132 |
| office@electroplast.ro | |
Website |
www.electroplast.ro |
Verification details
EPD author |
ENVIROCERT SRL, LCA practititioner: Stefan Cosuta |
Verifier |
Vera Durao |
Declaration status |
Verified |
Environmental impacts
Declared unit |
1 meter of cable N2XH 3x2,5 |
Mass per unit |
0.166 kg |
