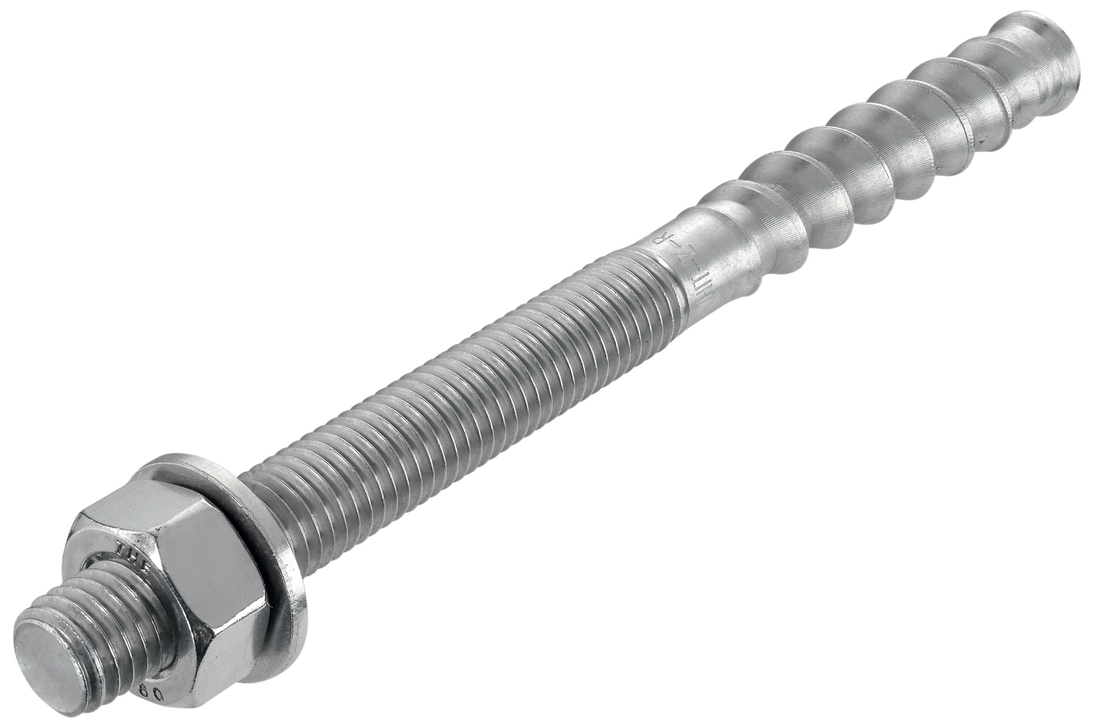

HIT-Z-R
Ultimate-performance anchor rod for injectable hybrid anchors (A4 stainless steel) with the following features:
- Very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
- No hole cleaning required (above 5°C / 41°F) with HIT-HY 200
- More reliable and productive solution thanks to elimination of the hole cleaning process when used with HIT-HY 200 adhesive mortars
- Variable depth of embedment to fully utilise the anchor capacity
- Head marking for easy verification of rod length, even after installation
100% of the declared product derives from electric arc furnace produced steel and carries secondary material (recycled material) content of 80%. Based on the most comprehensive market information and internal evaluations available, the pre-consumer share is on average approximately 30% (out of 80%), which means a 24% share of the steel components, while the post-consumer share is on average approximately 70% (out of 80%), which means a 56% share of the steel components.
Applications:
- Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
- Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)
- Anchoring structural steel connections (e.g. steel columns, beams)
- Outdoor applications or fastenings in corrosive environments with HIT-Z-R
Hilti AG
20 Jun 2025
Construction product
HUB-3511
Liechtenstein
20 Jun 2030
Product sector |
Construction product |
EPD category |
Third party verified EPD (5 years) |
Averaging type |
No averaging |
Scope |
Cradle to gate with options, A4-A5, and modules C1-C4 and D |
Reference standard |
EN 15804+A2:2019 |
PCR |
EPD Hub Core PCR 1.1 |
cPCR |
Not provided |
Manufacturer information
Name |
Hilti AG |
Address |
Feldkircherstrasse 100, FL-9494, Schaan, LI |
| sustainability@hilti.com | |
Website |
www.hilti.group |
Verification details
EPD author |
Ege Oguzhan Parlak |
Verifier |
Imane Uald Lamkaddam (imane.uald@epdhub.com) |
Declaration status |
Verified |
Environmental impacts
Declared unit |
1 kg |
Mass per unit |
1.0 kg |

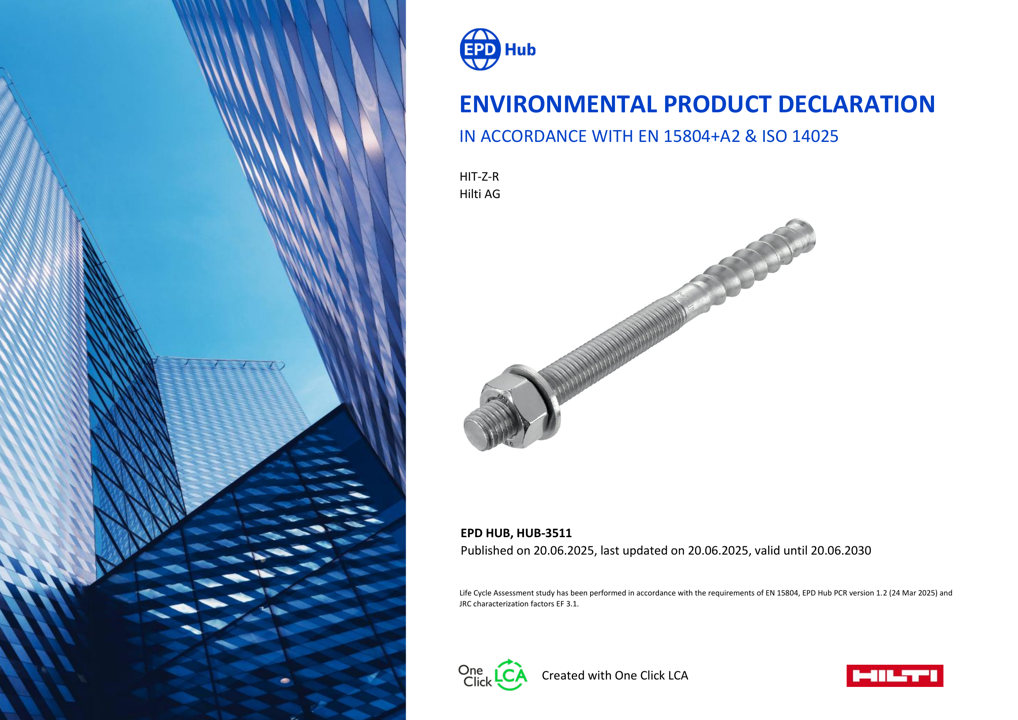

Preview PDF
