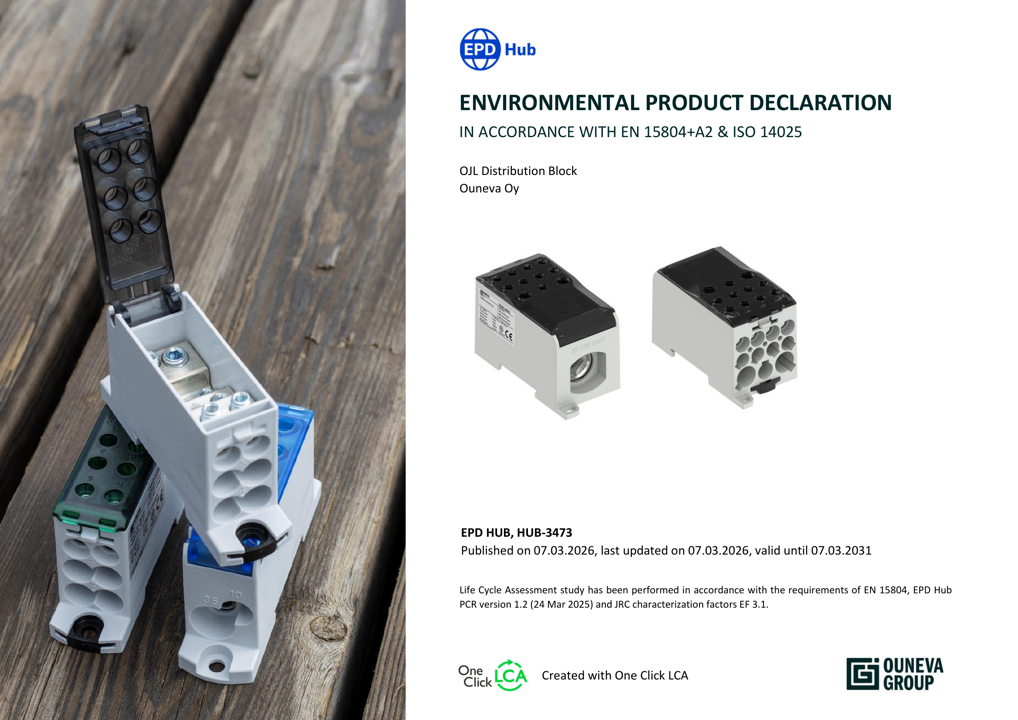

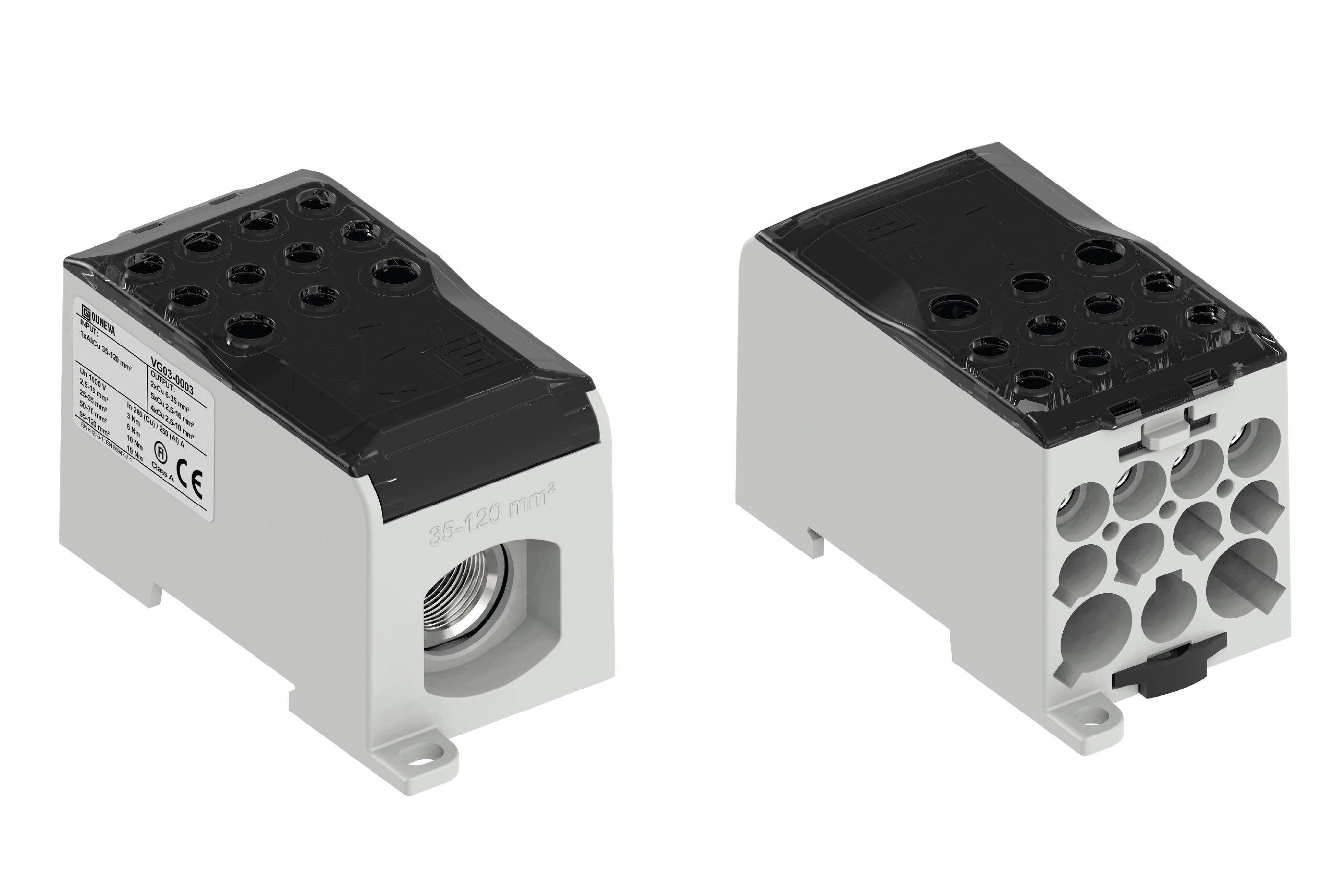

OJL distribution blocks are used for branching connections in electrical devices. Our range includes safe and easy-to-install branching connectors suitable for constricted spaces, special circumstances and with a nominal voltage even up to 1000V.The single pole distribution block OJL 280 distributes the current trough 11 output cables. The body of the distribution blocks is tin plated aluminium. Insulating cover is made from halogen-free UL 94-V0-class polyamide. OJL 280 studied in the EPD acts as a representative of the OJL product group. OJL distribution blocks can be used with aluminium and copper wires. Installation can be done with screws or onto a DIN-rail. The OJL 80 & 135 distribution blocks can be connected in series. In other models, the input is through one conductor. Outputs can be done between the connector models with 6, 7 or 11 conductors. Branching connections can be also done with input conductors up to 240mm2 and busbars up to 10x(1x24). Standards: EN 60947-7-1:2009, EN 61238-1:2003
