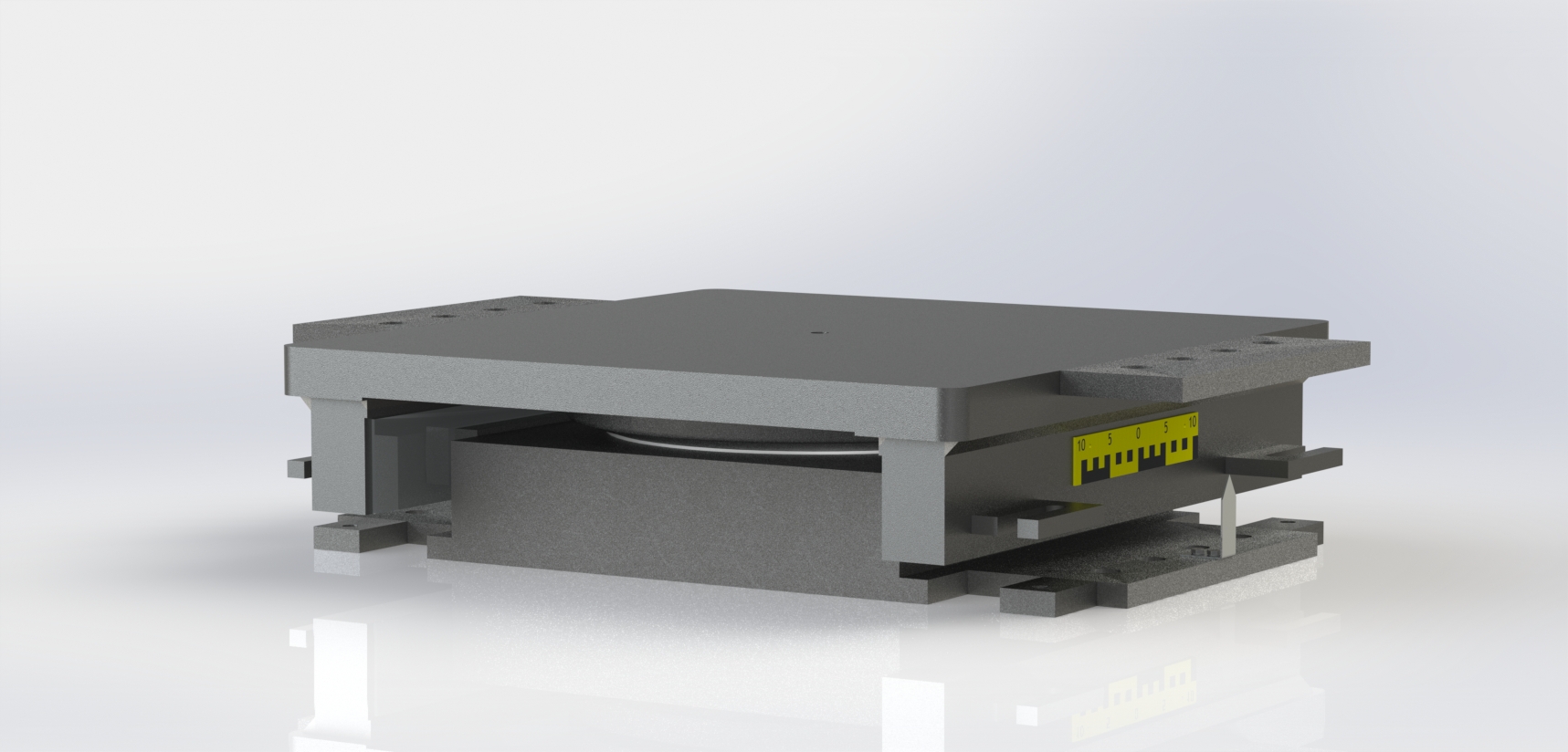

RESTON SPHERICAL bearing

RESTON SPHERICAL bearing is designed for structures requiring the transfer of loads between the superstructure and substructure, particularly where space for bearings is limited. The referenced product is a RESTON SPHERICAL bearing type KE 9.6 kN, its total weight is 470.5 kg and is mainly made of steel. These bearings allow for guided sliding along one horizontal axis and resist forces in a perpendicular direction. The indicative service life is of 75 years as per European Technical Approval ETA-23/0831. The product includes a convex curved element, matching a concave surface. Combined with ROBO®SLIDE 75, a modified ultrahigh molecular weight polyethylene sliding material, it efficiently transfers vertical loads, while allowing rotations. The bearing is connected to the superstructure and substructure by various anchorage systems (not included in the scope of this EPD), which can be, depending on the design, anchor dowels, threaded sleeves, or anchor plates with shear studs. The product complies with the European norm for structural bearings, EN 1337, in combination with the European Technical Approval ETA-23/0831. More information can be found at: https://www.mageba-group.com/global/en/1026/Infrastructure/Structural-bearings/SPHERICAL-BEARING/RESTON-SPHERICAL.htm
Read more
Manufacturer
mageba Services & Technologies AG
Published date
27 Dec 2024
Product Sector
Construction product

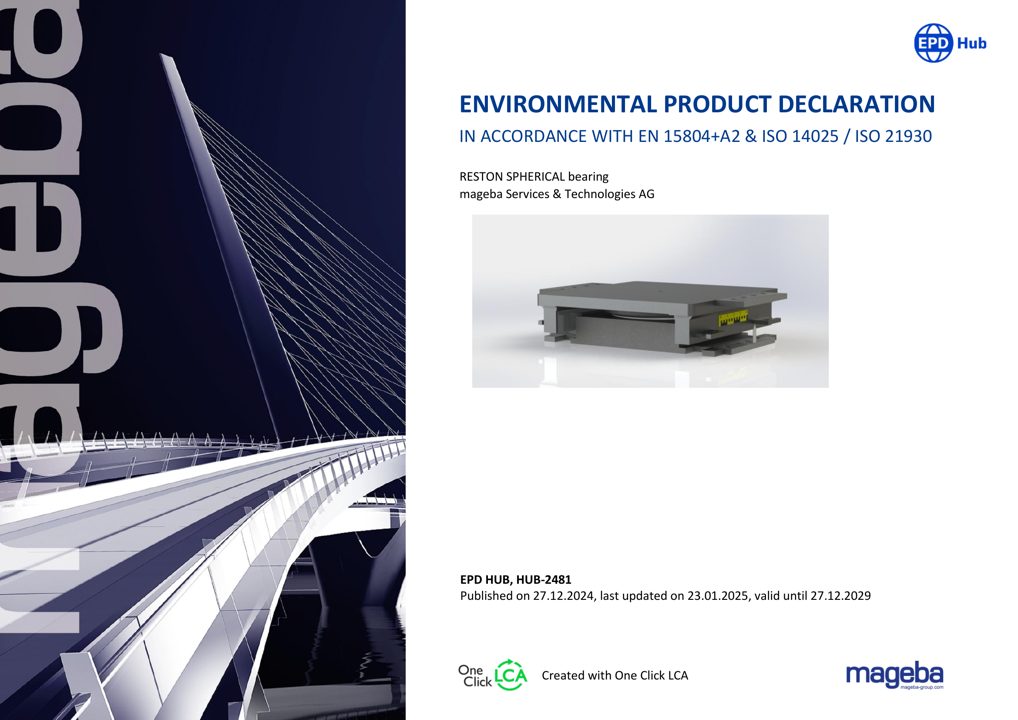

EPD number
HUB-2481
Country
Hungary
Expiry date
26 Dec 2029

EPD details

Product sector
Construction product
EPD category
Third party verified EPD (5 years)
Averaging type
No averaging
Scope
Cradle to gate with modules C1-C4 and D
Reference standard
EN 15804+A2:2019
PCR
EPD Hub Core PCR 1.1
cPCR
Not provided

Manufacturer information

Name
mageba Services & Technologies AG
Address
Trafostrasse 1, 8180 Bülach, Switzerland
Email
info@mageba-group.com
Website
mageba-group.com

Verification details

EPD author
Victoria Morales, mageba Services & Technologies AG
Verifier
Imane Uald Lamkaddam
Declaration status
Verified

Environmental impacts

Declared unit
1 kg of spherical bearing
Mass per unit
1.0 kg
