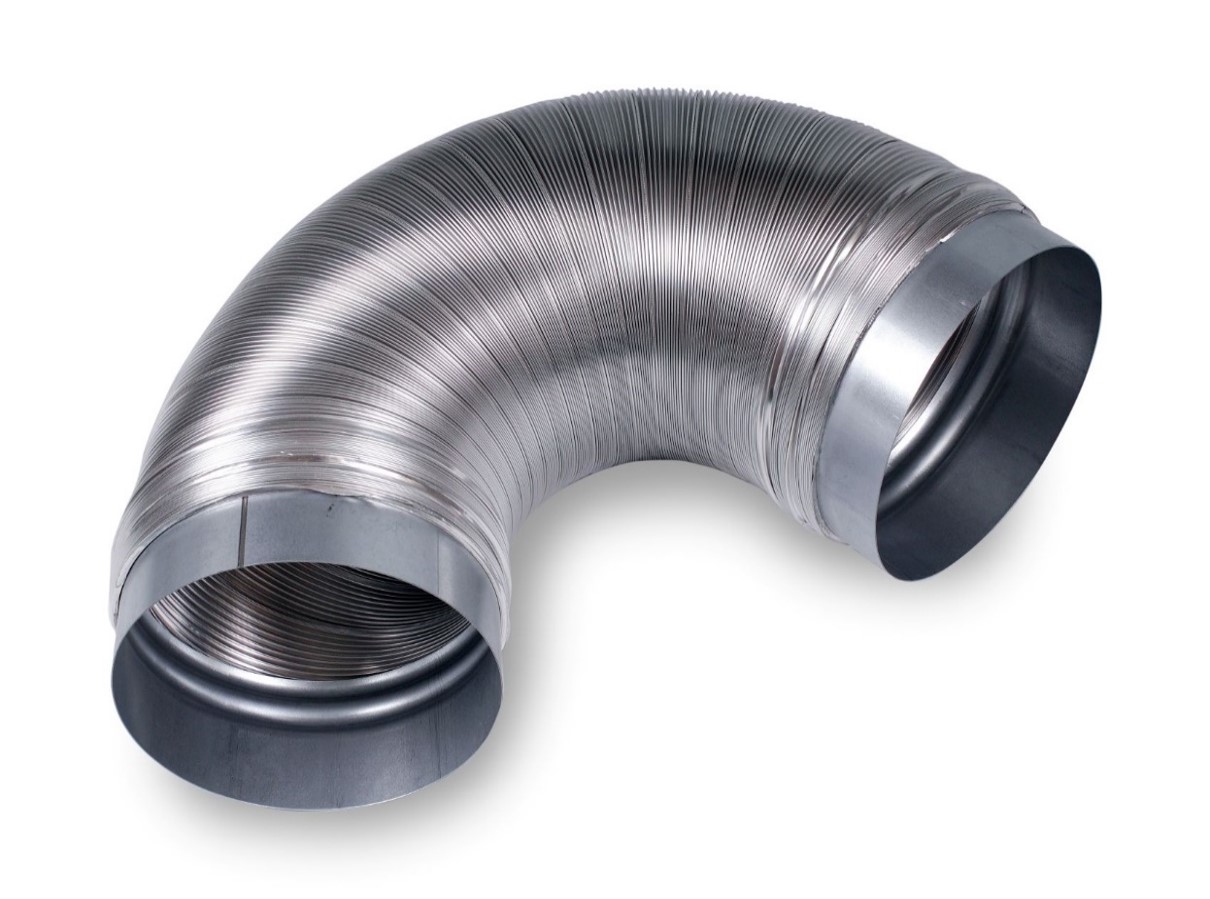

Compact MM flexible aluminium duct
A lightweight, bendable, and extendable aluminium duct. It is also available with pre-mounted end pieces featuring a female (muff) connection as standard, referred to as “Compact MM, and can alternatively be supplied with a male (nipple) connection. It is used as a ventilation duct for various applications including industrial facilities and small residential buildings.
Delivered in a compressed state, it can be extended to four times its compressed length. It consists of a single layer of aluminum strip that is corrugated and seamed together. The bending radius is calculated at 0.5–1 × the diameter. These ducts are available in diameters Ø80 mm–Ø315 mm and can be produced in many different lengths, including custom dimensions.
They are classified as non-combustible in material class A1 and meet tightness class C.
Westaflex AB
16 Apr 2025
Construction product
HUB-3196
Sweden
15 Apr 2030
Product sector |
Construction product |
EPD category |
Third party verified EPD (5 years) |
Averaging type |
Multiple products |
Scope |
Cradle to gate with options, A4-A5, and modules C1-C4 and D |
Reference standard |
EN 15804+A2:2019 |
PCR |
EPD Hub Core PCR 1.1 |
cPCR |
Not provided |
Manufacturer information
Name |
Westaflex AB |
Address |
Kärragatan 4, 431 53 Mölndal SE |
| info@westaflex.se | |
Website |
https://www.westaflex.se/ |
Verification details
EPD author |
Oscar Ternstrom |
Verifier |
Imane Uald Lamkaddam |
Declaration status |
Verified |
Environmental impacts
Declared unit |
1 kg of ventilation products |
Mass per unit |
1.0 kg |
