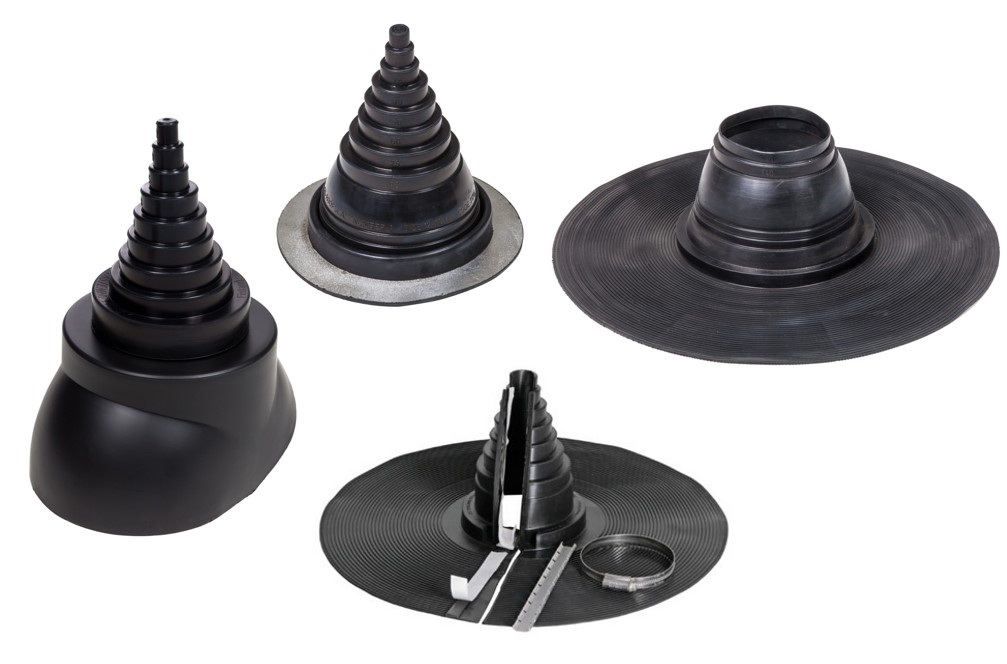

Aerial Sleeve 12-100: Pass-through seal for a Ø 12/19/25/38/50/60/75/90/100 mm aerial pipe, mast, cable or roof bollard installed on a roof. In addition to the stepped EPDM rubber seal, the set contains a plastic collar and a clamp. The plastic collar should be installed onto a VILPE pass-through set which has been selected according to the roofing material. The flexible rubber cone permits some movement of the aerial pipe, and ensures a watertight seal between the pass-through and the roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Pipe Sealing 110–155: Pass-through seal for a Ø 110-155 mm pipe, mast, cable or roof bollard installed on a roof. In addition to the stepped EPDM rubber sealing, the set contains a plastic collar and a clamp. The plastic collar should be installed onto a VILPE pass-through set which has been selected according to the roofing material. The flexible rubber cone permits some movement of the pipe, and ensures a watertight seal between the pass-through and the roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Felt Roof Seal: Pass-through seal for round pipes installed on a felt roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. A separately available Clamp should also purchased, and selected based on the size of the pipe. Pass-through seals are recommended to use on flat roofs (max. 11,5° slope). R-Felt Set: Pass-through seal for round pipes installed on a felt roof while retrofitting. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. Pass-through seals are recommended to use on flat roofs (< 11,5° slope) RHS Seal: Pass-through seal for square pipes installed on a felt roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. A separately available RHS Clamp RST A2 should also purchased, and selected based on the size of the pipe. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Roof Seal Set: Pass-through seal for different kinds of pipes (e.g. mountings for billboards and flagpoles or electrical wires) installed on a metal roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: Available in 6 different sizes with diameters 12-521 mm. Roof Seal Retrofitting Set: Pass-through seal for different kinds of pipes (e.g. mountings for billboards and flagpoles or electrical wires) installed on a metal roof while retrofitting. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: Available in 2 sizes with diameters of 10-100 and 100-230 mm. Vapour Barrier Seal: Vapour barrier seal for pipes installed through the vapour barrier on an inclined or low-pitched roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with bitumen if a roof’s vapour barrier is made of bitumen, and with a board made of hard material on top of the vapour barrier valve if a roof’s underlay material is made of profiled sheet metal. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: Height 33 mm. Tall Vapour Barrier Seal: Tall vapour barrier seal for pipes installed through the vapour barrier on an inclined or low-pitched roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with bitumen if a roof’s vapour barrier is made of bitumen, and with a board made of hard material on top of the vapour barrier valve if a roof’s underlay material is made of profiled sheet metal. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: Height 133 mm. PVC Roof Seal: Optimal for sealing round pipes on PVC roofs. Examples of applications are ventilation discharge pipes, roof poles, sewerage vent pipes, signboard or flagpole bases, aerial sleeves, the external suspension tie-rods of the roof as well as railings. Made of coloured polyvinyl chloride (PVC). Should be installed with hot air welding. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: For duct sizes Ø 12-100 mm and 110-160 mm. RHS-Felt Retrofitting Seal 80-150: Pass-through seal for square pipes installed on a felt roof while retrofitting. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Roofseal: Pass-through seal for different kinds of pipes (e.g. mountings for billboards and flagpoles or electrical wires) installed on a metal roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: Available in 6 different sizes with diameters 12-521 mm. XL Pipe sealing 175–250: For leading antennas, flagpoles and other pipes and bollards through the roof. Stepped EPDM rubber, installed on a separately available VILPE XL pass-through. The pass-through is chosen according to the roofing material.Dimensions: For duct sizes Ø 175/200/225/250 mm.
