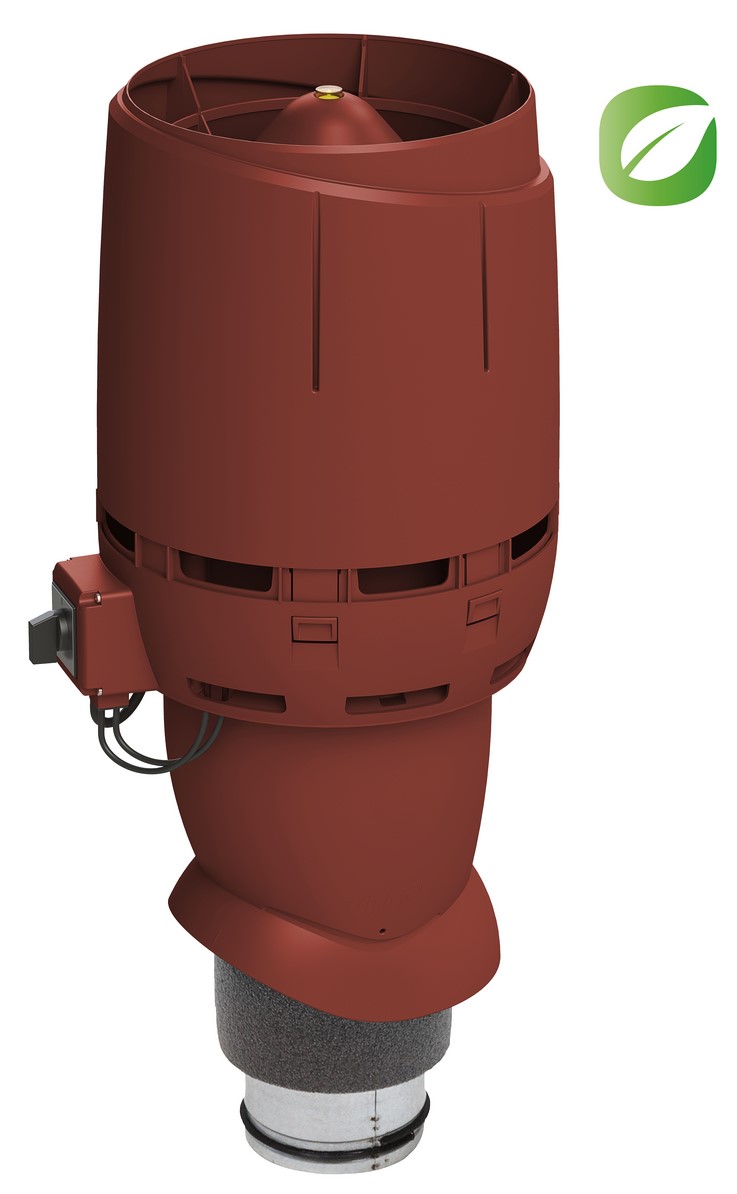

The P-series roof fans can be led watertightly with a pass-through set through a roof. VILPE pass-through sets can be installed on any roofs with the most common pitches. The pass-through set is always selected according to the roofing material of the roof. All the roof fans in the P-series are compatible with all pass-through set types. Using P-series XL roof fans and XL exhaust ventilation pipes requires an XL pass-through. C-series roof fans are used, like the P-series products, in solutions where the duct is to be routed through the roof and a cone. The difference is that the C-series roof fans are installed on top of a sheet metal cone made by a sheet metal worker for the roof. The top of the cone must be Ø 170 mm, 230 mm, or 315 mm, depending on the size of the extractor or exhaust duct. EC110P/500 FLOW Roof Fan: Roof fan for radon ventilation or as a fan for an eco-toilet. The radon fan is not suitable for indoor air ventilation. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Potentiometer, and home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 110 mm, height above roof approx. 500 mm. EC110P/700 FLOW Roof Fan: Roof fan for radon ventilation or as a fan for an eco-toilet. The radon fan is not suitable for indoor air ventilation. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Potentiometer, and home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 110 mm, height above roof approx. 700 mm. EC125P/500 FLOW Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal Wireless, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. The product includes polyester fibre insulation approximately 20 mm thick and 200 mm high, which facilitates insulation at the roof pass-through. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 125 mm, height above roof approx. 500 mm. EC125P/700 FLOW Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal Wireless, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. The product includes polyester fibre insulation approximately 20 mm thick and 200 mm high, which facilitates insulation at the roof pass-through. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 125 mm, height above roof approx. 700 mm. EC160P/500 FLOW Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 160 mm, height above roof approx. 500 mm. EC160P/700 FLOW Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 160 mm, height above roof approx. 700 mm. EC160P/IS/700 FLOW XL Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. The roof fan is equipped with an XL-sized cowl and base, which allows for improved insulation around the ventilation duct. In addition to the fan, a VILPE XL roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 160 mm, external Ø 305 mm, height from roof surface approx. 700 mm. E220P/Ø160/500 Roof Fan: Insulated AC roof fan. Includes an inner pipe with a lip seal, made of galvanized steel sheet. Can be controlled, for example, with the VILPE Controller AC regulator. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm. E220P/Ø160/700 Roof Fan: Insulated AC roof fan. Includes an inner pipe with a lip seal, made of galvanized steel sheet. Can be controlled, for example, with the VILPE Controller AC regulator. In addition to the fan, a VILPE roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height from roof surface approx. 700 mm. E220P/Ø160/700 XL Roof Fan: Insulated XL roof fan with an AC motor. Includes an inner pipe with a lip seal, made of galvanized steel sheet. Can be controlled, for example, with the VILPE Controller AC regulator. In addition to the fan, a VILPE XL roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 160 mm, external Ø 300 mm, height from roof surface approx. 700 mm. EC110C/400 FLOW Roof Fan: Roof fan for radon ventilation or as a fan for an eco-toilet. The radon fan is not suitable for indoor air ventilation. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Potentiometer, and home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. Installation is on a sheet-metal cone with an upper part of Ø 230 mm, made by a tinsmith. Dimensions: Duct size Ø 110 mm, height above roof approx. 480 mm + cone height. EC125C/400 FLOW Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal Wireless, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. Installation is on a sheet-metal cone with an upper part of Ø 230 mm, made by a tinsmith. Dimensions: Duct size Ø 125 mm, height above roof approx. 480 mm + cone height. EC160C/450 FLOW XL Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal Wireless, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. Installation is on a sheet-metal cone with an upper part of Ø 315 mm, made by a tinsmith. Dimensions: Duct size Ø 160 mm, height above roof approx. 530 mm + cone height. E220C/Ø160/450 XL Roof Fan: Insulated XL roof fan. Includes a galvanized steel inner pipe with a lip seal. Should be installed in a sheet metal cone with a Ø 315 mm opening, made by a tinsmith. Dimensions: Duct size Ø 160 mm, height above roof approx 450 mm + cone height. Further information can be found at: https://www.vilpe.com/
