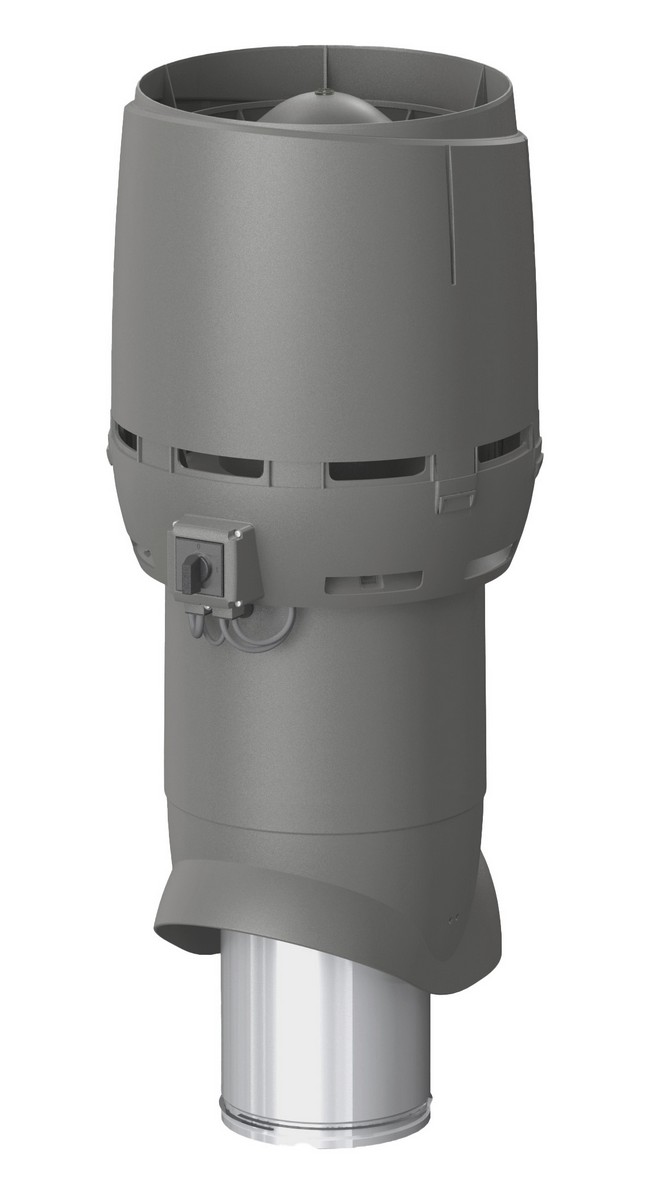

The P-series roof fans can be led watertightly with a pass-through set through a roof. VILPE pass-through sets can be installed on any roofs with the most common pitches. The pass-through set is always selected according to the roofing material of the roof. All the roof fans in the P-series are compatible with all pass-through set types. Using P-series XL roof fans and XL exhaust ventilation pipes requires an XL pass-through. C-series roof fans are used, like the P-series products, in solutions where the duct is to be routed through the roof and a cone. The difference is that the C-series roof fans are installed on top of a sheet metal cone made by a sheet metal worker for the roof. The top of the cone must be Ø 170 mm, 230 mm, or 315 mm, depending on the size of the extractor or exhaust duct. The S-series roof fans are designed to be installed in the ventilation shaft, onto a silencer or in or other horizontal surface. The S-roof fans are used, for example, in blocks of flats and terraced houses, when flat-specific ventilation is required. The S-series roof fan can also be used for modifying an old natural ventilation system into a mechanical one during renovation. EC200P/500 FLOW XL Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. In addition to the fan, a VILPE XL roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 200 mm, external Ø 300 mm, height above roof approx. 500 mm. EC200P/700 FLOW XL Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. In addition to the fan, a VILPE XL roof pass-through, selected according to the roofing material, is required. Dimensions: Duct size Ø 200 mm, external Ø 300 mm, height above roof approx. 700 mm. EC200C/400 FLOW XL Roof Fan: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal Wireless, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. Installation is on a sheet-metal cone with a top diameter of Ø 315 mm, made by a tinsmith. Dimensions: Duct size Ø 200 mm, height above roof approx. 530 mm + cone height. EC200S FLOW XL Roof Fan 400X400: Roof fan for mechanical exhaust ventilation or as a fan for a cooker hood. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Ideal Wireless, or home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. Installed directly onto the ventilation duct above a chimney or silencer. When installed on a horizontal flat surface, the installation kit included in the package is used. Dimensions: Duct size Ø 200 mm; installation set 400 x 400 mm, installation area must be at least the same size. Further information can be found at: https://www.vilpe.com/
