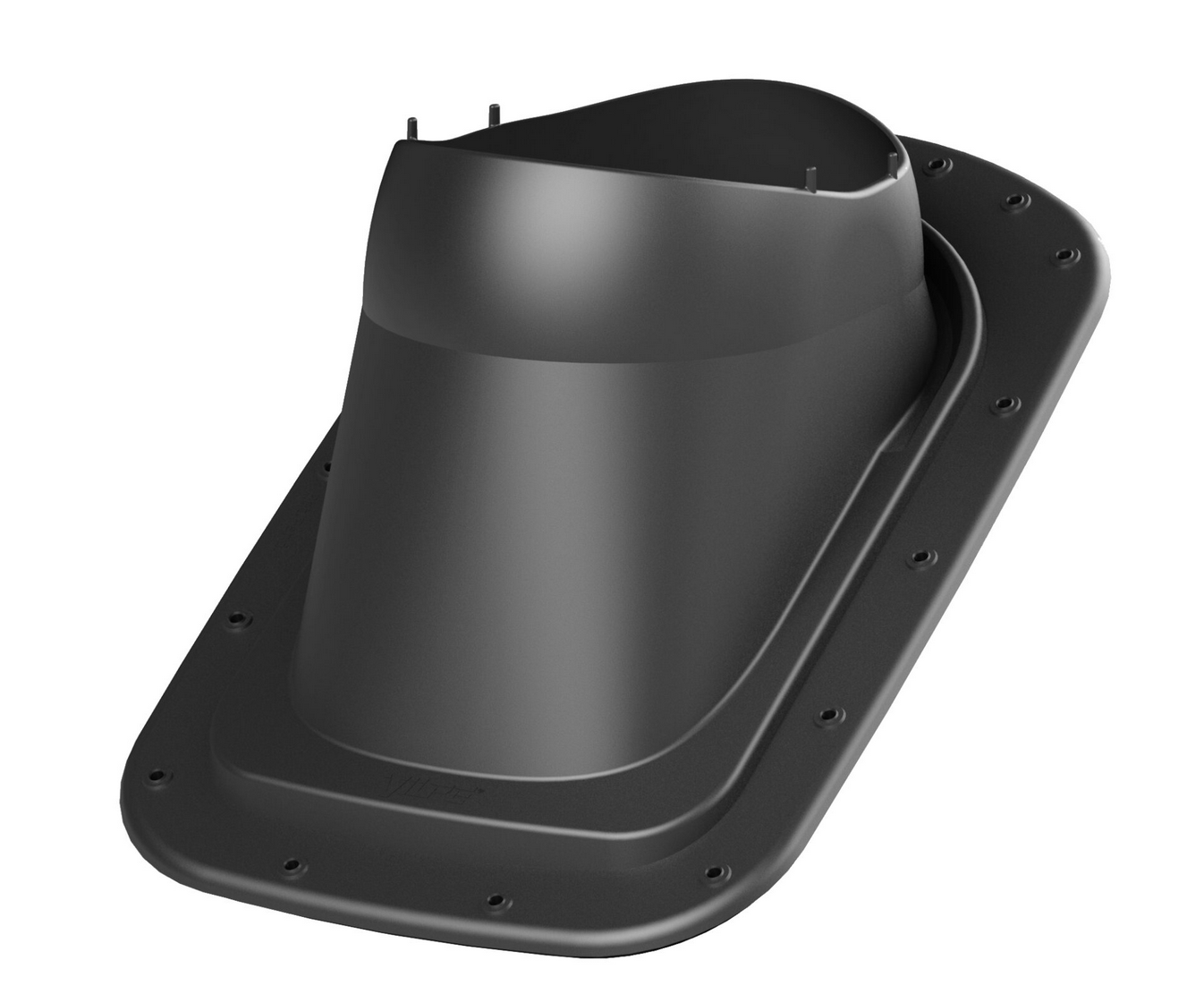

Pass-throughs are required when installing VILPE roof fans and exhaust ventilation pipes. They prevent water from flowing into openings made in the underlay and the roofing material, thereby ensuring that it remains watertight. Our product selection includes high-quality and easy-to-install pass-throughs for all kinds of roofing materials, colours and pitches. The pass-throughs are designed with ease of installation in mind, so these products are suitable for DIY installation conducted by one person without the need for specialist knowledge. Tile Click Pass-Through: The most common concrete tile roofing types. Replaces one 2-wave concrete tile up to width 330 mm and wave height 27–40 mm. Used with VILPE P-series roof fans and ventilation pipes with a diameter of 110–160 mm. Contents: Pass-through, Click underlay seal, screws, installation instructions/template for the underlay seal and the passthrough. Unitile Click Pass-Through: All tile roofings (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles). Contents: Pass-through, Click underlay seal, upper edge seal set, bottom bracket, screws, installation instructions/template for the underlay seal and the pass-through. Evo Click Pass-Through: Monier/Braas Teviva/Braas Tegalit plain tiles with length 420 mm, width 330 mm. Contents: Pass-through, Click underlay seal, screws, installation instructions/template for the underlay seal and the pass-through. Classic Loiva Click Pass-Through: Plain standing seam roofing with roof pitches of 5-27°. Thick rubber seal on the bottom of the flange. Contents: Pass-through, Click underlay seal, screws, installation instructions/templates for the underlay seal and the pass-through. Classic Vino Click Pass-Through: Plain standing seam roofing. Thick rubber seal on the bottom of the flange. Minimum roof pitch 1:5 (11,5°). Contents: Pass-through, Click underlay seal, screws, installation instructions/templates for the underlay seal and the pass-through. Profiled Steel Click Pass-Through: All round profiled metal sheet roofing types (tilepatterned). Minimum length of tile pattern 350 mm. Mouldable and fully waterproof thanks to the rubber seal on the bottom surface. Used with VILPE P-series ⌀ 110–160 mm roof fans and ventilation pipes. Contents: Pass-through, Click underlay seal, screws, installation instructions/template. Nera Click Pass-Through: Ruukki´s Finnera or Finnera Plus or similar roofing. Formerly called VILPE® SPT 60 pass-through or Finnera Plus. Contents: Pass-through, Click underlay seal, screws, template. Steel Click Pass-Through: Low profiled metal sheet roofing. Waterproof thanks to the rubber cone with the mouldable aluminium flange. Used with VILPE P-series ⌀ 110–160 mm roof fans and ventilation pipes. Contents: Pass-through, Click underlay seal, sealing ring, screws, template/installation instructions. Aalto Click Pass-Through: Ruukki´s Adamante or similar metal sheet roofing. Contents: Pass-through, Click underlay seal, screws, installation instructions/templates for the underlay seal and the pass-through. Hygge Click Pass-Through: Ruukki´s Hyygge or similar metal sheet roofing. Contents: Pass-through, Click underlay seal, screws, installation instructions/templates for the underlay seal and the pass-through. Nova Click Pass-Through: For Ruukki’s Frigge or similar sheet metal roofs. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Contents: Pass-through, Click underlay seal, screws, installation instructions. Decra Click Pass-Through: For Decra roofs. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Dimensions: Length 374 mm, width 290 mm. Contents: Pass-through, Click underlay seal, sealing compound, screws, installation instructions HS Slate Pass-Through: For all slate, shingle and felt roofs; can be installed on roofs with pitches between 1:5 (11.5 degrees) and 50 degrees. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE HS Slate Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes. Contents: Pass-through, underlay ring, screws, installation instructions. Felt Pass-Through: For felt roofs, minimum roof pitch 1:5 (11.5 degrees); also suitable for slate roofs. Should be installed between two felt layers. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Felt Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes. Contents: Pass-through, underlay ring, screws, installation instructions. Felt Tall Pass-Through: For felt roofs with a pitch of less than 1:5 (11.5 degrees). The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Tall Felt Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes. Contents: Pass-through, underlay ring, screws, installation instructions. XL Classic Pass-Through: For plain standing seam roofs or felt roofs (if retrofitted); minimum roof pitch 1:5 (11.5°). If the pass-through is installed on a roof pitch less than 11.5°, the joint between the pass-through and the pipe must be sealed with weatherproof adhesive. This prevents meltwater from leaking between the pipe and the joint. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Classic Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes. Sealing compound (not incl.) required for installation on felt roofs. Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions. XL Felt Pass-Through: For felt roofs, minimum roof pitch 1:5 (11.5°). Should be installed between two felt layers. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Felt Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes. Dimensions: Flange width 150 mm. Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions. XL Felt Tall Pass-Through: For felt roofs with a pitch of less than 1:5 (11.5°). The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Tall Felt Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes. Dimensions: Height 300 mm, flange width 152-154 mm. Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions.
