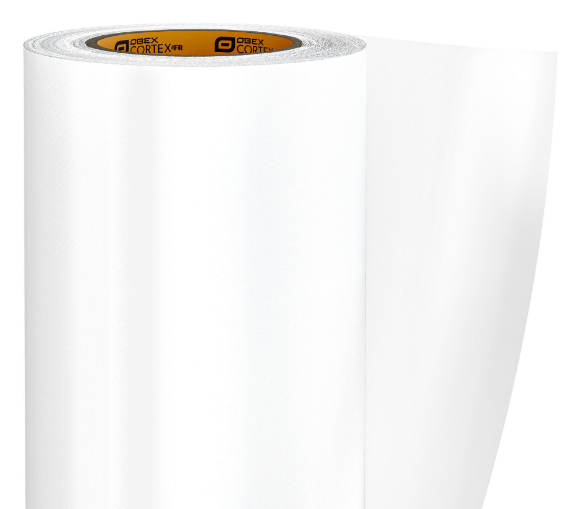

OBEX CORTEX 0220FR Class A1 Breather Membrane
OBEX CORTEX 0220FR Class A1 Breather Membrane features water resistant yet breathable technology, which facilitates the escape of moisture and the prevention of condensation within the external wall construction. It can be applied to many surfaces including sheathing board, concrete and insulation.
This Breather Membrane achieves A1 fire-classification when tested to EN 13859-2, the highest fire classification available.
The membrane is installed using the OBEX CORTEX 0825 Installation Kit which includes 2 rolls of 0824FR Double-Sided Tape and 6 rolls of single sided 0823FR UV Façade Tape.
Typical Uses
In façade construction behind cladding systems, ensuring water does not penetrate into the structure.
Behind external masonry or curtain walling, to safeguard the primary waterproofing from wind-driven rain and to allow moisture from inside to escape.
OBEX Protection Ltd
19 Mar 2026
Construction product
HUB-5790
United kingdom
18 Mar 2031
Product sector |
Construction product |
EPD category |
Third party verified EPD (5 years) |
Averaging type |
No averaging |
Scope |
Cradle to gate with options, A4-A5, and modules C1-C4 and D |
Reference standard |
EN 15804:2012+A2:2019/AC:2021 |
PCR |
EPD Hub Core PCR 1.2 |
cPCR |
Not provided |
Manufacturer information
Name |
OBEX Protection Ltd |
Address |
Unit 5, Norton Road, Broomhall, Worcester, WR5 2QR |
| technical@obexuk.com | |
Website |
obexglobal.com |
Verification details
EPD author |
Callum Doouss |
Verifier |
Sarah Curpen |
Declaration status |
Verified |
Environmental impacts
Declared unit |
OBEX CORTEX 0220FR Class A1 Breather Membrane |
Mass per unit |
0.22344 kg |

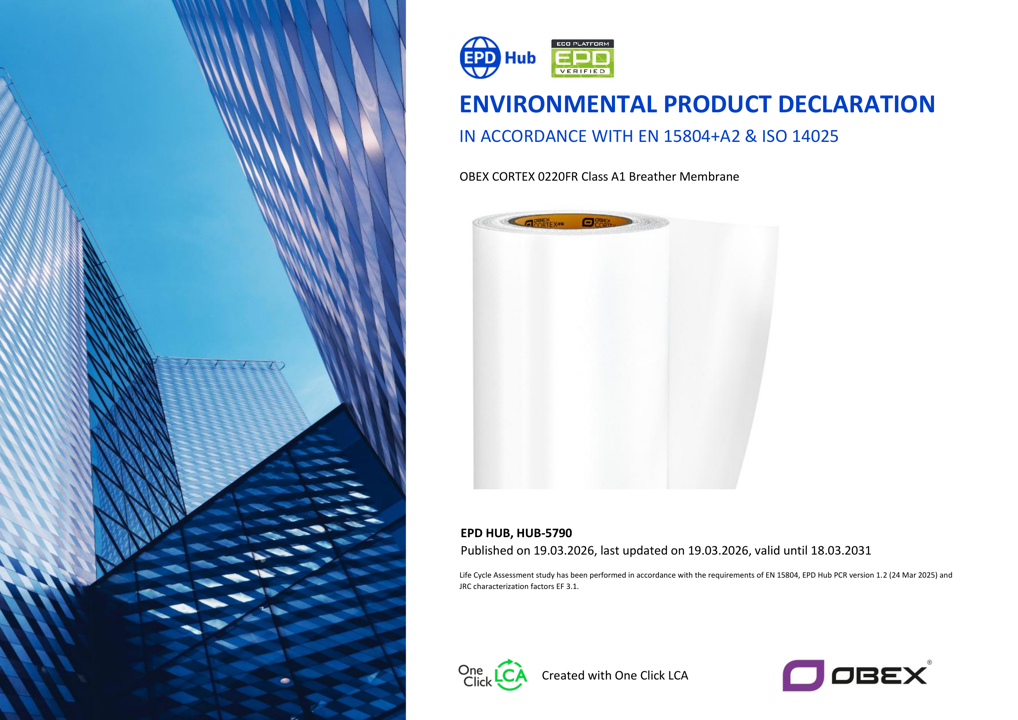

Preview PDF
