Enthermal

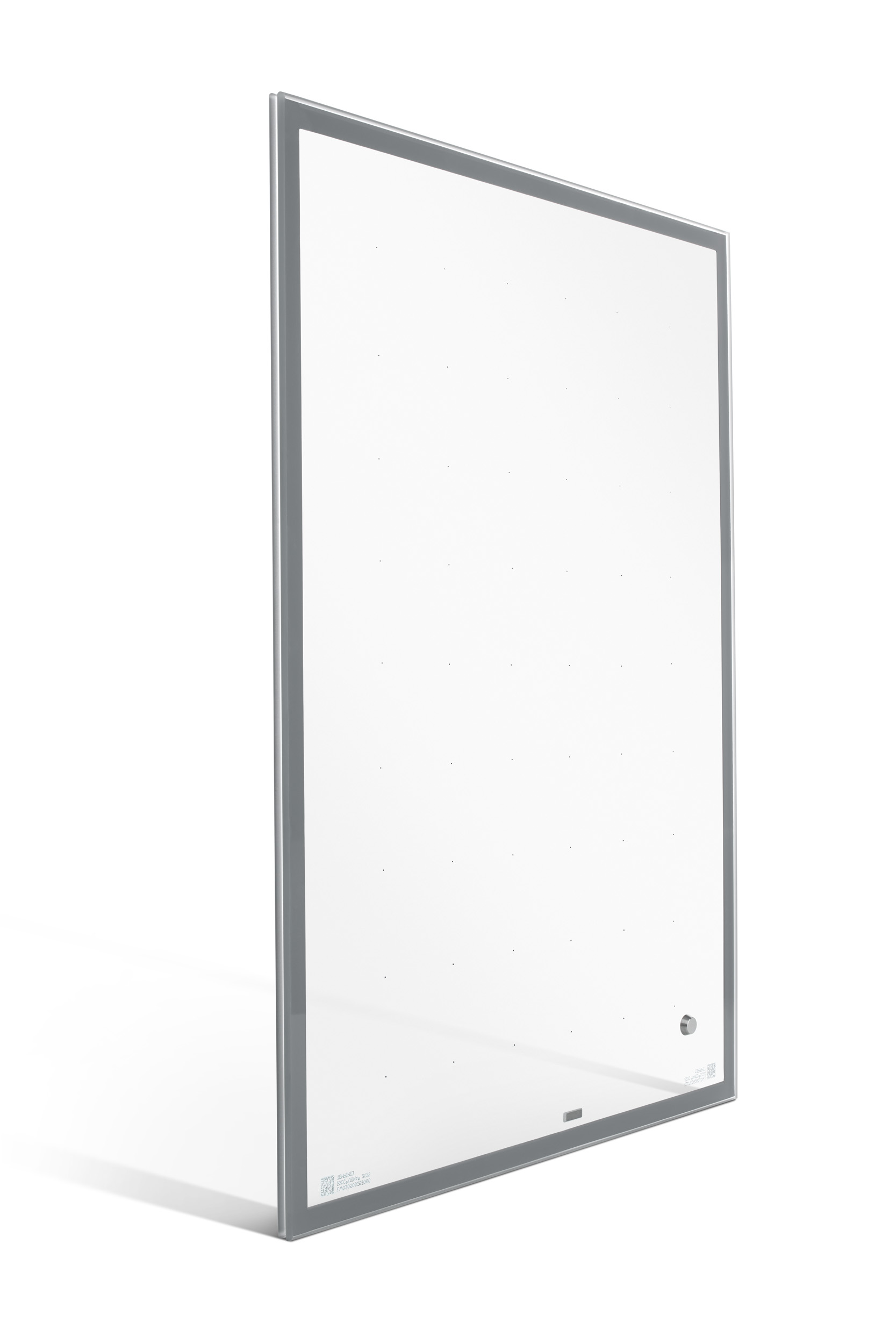

Luxwall's Enthermal is a vacuum insulated glazing (VIG) window product with a total thickness of 10mm. The product consists of two sheets of tempered float glass—one clear and one Low-E coated—that are hermetically sealed together using inorganic sealing frit. Between the two glass panes, a designated vacuum layer is maintained using micro-pillars for structural support and getter material for vacuum preservation. Each unit contains a vacuum port at a single designated location, consistent across all product sizes offered in the Enthermal product line. Luxwall Enthermal energy-efficient technology delivers exceptional thermal insulation performance, achieving R-18 insulation values comparable to fiberglass wall insulation. The product demonstrates thermal insulation values (Ug) ranging from 0.3 to 0.5 W/m2K, representing superior energy efficiency for glazing applications. Enthermal has obtained voluntary CE marking, making it the first tempered vacuum insulating glazing solution in the world with these thermal insulation values to carry this certification, validating its performance and quality standards for the European market.
Read more
Manufacturer
Luxwall
Website
Published date
20 Mar 2026
Product Sector
Construction product
EPD number
HUB-5803
Country
United States
Expiry date
19 Sep 2027

EPD details

Product sector
Construction product
EPD category
Design phase EPD (18 months)
Averaging type
No averaging
Scope
Cradle to gate with options, A4-B7, and modules C1-C4 and D
Reference standard
EN 15804:2012+A2:2019/AC:2021
PCR
EPD Hub Core PCR 1.2
cPCR
c-PCR EN 17074:2019 Flat Glass

Manufacturer information

Name
Luxwall
Address
1130 James L Hart Parkway Ypsilanti MI 48197 United States
Email
pmegharaj@luxwall.com
Website
www.luxwall.com

Verification details

EPD author
Prabhu Megharaj and Luxwall
Verifier
Sarah Curpen
Declaration status
Verified

Environmental impacts

Declared unit
1m2 of Vacuum Insulated Glass Unit
Mass per unit
23.474 kg
