STRUCTURAL PLYWOOD(Head office plant,Third plant,Kohoku plant)

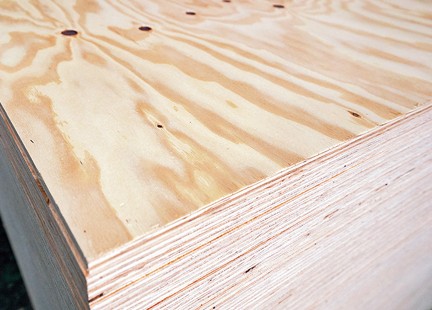

"Structural plywood is a wood-based panel material used in structurally critical components of wooden buildings to ensure seismic resistance and durability.
○Product Standards
Complies with various standards stipulated in the Japanese Agricultural Standard (JAS), including ""bending tests,"" ""adhesive strength tests,"" and ""formaldehyde emission tests.""
○Technical and Functional Characteristics
・Cross-laminated structure: Three or more veneers are bonded with their grain directions perpendicular to one another, reducing anisotropy in in-plane shear and bending performance.
・Superior mechanical performance: High nail-holding capacity and rigidity, functioning as load-bearing walls and structural diaphragms that resist horizontal forces during earthquakes.
○Technical Data
・Standard product dimensions: Width 910–1,230 mm × Length 1,820–3,030 mm, etc.
・Thickness: 9 mm, 12 mm, and 15 mm for floor and wall underlays; 24 mm and 28 mm for joist-free flooring systems.
・Strength grade: Grade 2 and Grade 1
・Adhesive durability: Phenolic resin adhesive is used, achieving the highest JAS classification of ""Special Class (Toku-rui)"" for water and moisture resistance.
・Low formaldehyde emissions: F☆☆☆☆ grade (highest grade).
○Applications and Usage in Buildings
・Wall underlays and load-bearing walls in traditional wooden post-and-beam construction and platform frame construction (2×4 method).
・Floor underlays using thick plywood (24 mm or more), allowing floor panels to be fastened directly without the need for joists.
・Roof underlays (sheathing boards): Used as base boards to support roofing materials such as roof tiles and slate.
○Features of the Head Office Plant
・The Head Office Plant commenced operations in 2000 and serves as the core plant of the Nisshin Group, specializing in the production of long-length plywood (2,400 mm or more in length).
・In addition to standard Grade 2 structural products widely distributed in the market, the plant also produces Grade 1 products used in structurally critical components such as load-bearing walls."
NISSHIN CO.,LTD.
21 Aug 2026
Construction product
HUB-7285
Japan
20 Aug 2031
Product sector |
Construction product |
EPD category |
Third party verified EPD (5 years) |
Averaging type |
Multiple factories |
Scope |
Cradle to gate with modules C1-C4 and D |
Reference standard |
EN 15804:2012+A2:2019/AC:2021 |
PCR |
EPD Hub Core PCR 1.2 |
cPCR |
Not provided |
Manufacturer information
Name |
NISSHIN CO.,LTD. |
Address |
100 Nishikogyodanchi, Sakaiminato City, Tottori Prefecture |
| nss@nisshin.gr.jp | |
Website |
https://www.nisshin.gr.jp/ |
Verification details
EPD author |
Yasuhiro Kuramoto (NISSHIN HOLDINGS CO.,LTD. NS WOOD SCIENCE R&D |
Verifier |
Afzal khan Peerukhan |
Declaration status |
Verified |
Environmental impacts
Declared unit |
1m3 of Structural plywood |
Mass per unit |
500.0 kg |
